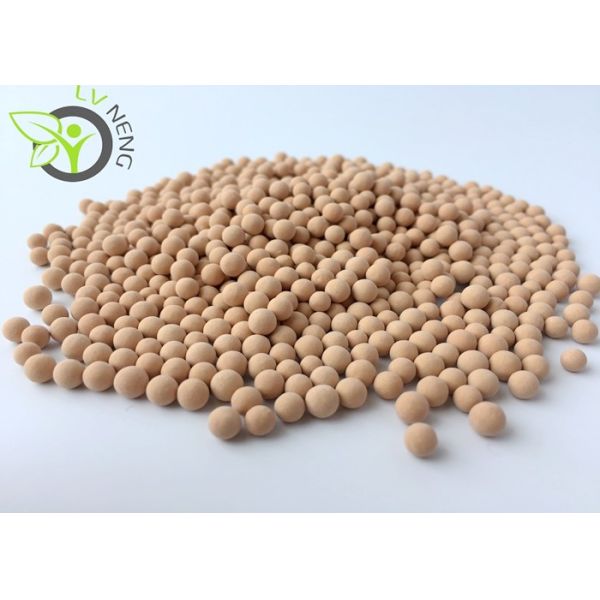

Gas Separation Used 13x Zeolite Molecular Sieve 2.0-3.0 mm,3.0--5.0 mm , 4.0-6.0 mm
Introduction
13x zeolite molecular sieve for oil and gas pure is kind of sodium aluminosilicate, with a pore opening of 9-10 angstroms (0.9nm). The main component of an X-type molecular sieve is aluminosilicates, silicon-oxy and alumina tetrahedron to form an FAU-type structure, as know as NaX-type.
Technical Parameter
| Molecular Sieve 13X Typical Physical Properties |
| Items | Unit | 8*12 Mesh | 4*6 Mesh |
| Bead Size | mm | 1.6-2.5 | 3.0-5.0 |
| Bulk Density | g/ml ≥ | 0.68-0.85 | 0.65-0.80 |
| Equilibrium Water Capacity @ 25℃ | wt% ≥ | 24.0-27.0 | 24.0-27.0 |
| Equilibrium Carbon Dioxide Capacity | wt% ≥ | 18 | 18 |
| Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 |
| Crush Strength | Point Contact | N ≥ | 30-80 | 80-130 |
| Variation Coefficient | - | 0.3 | 0.3 |
| Attrition Rate | wt% ≤ | 0.1 | 0.1 |
| Size Qualification | % ≥ | 97 | 97 |
| Package Moisture | wt% ≤ | 1.5 | 1.5 |
| The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 13X |
Application of 13x molecular sieve
1) Air separation plant gas purification, gas separation,removal of water and carbon dioxide
2) Natural gas, liquefied petroleum gas, liquid hydrocarbon drying and desulfurization
3) General gas deep drying
Our Services
1. We promise to reply to your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.The experienced foreign trader with professional product knowledge.
4. The value on business credite, promise to protect your sales data, design, patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
Storage
The molecular sieve shall be stored at room temperature, in which the relative humidity is not exceed 90%, and be not exposed in air, and prevented against water, acids and alkalizes.
